Split-Screen Mode allows you to view two paired cameras side by side on the Parent Unit, making it easy to monitor multiple rooms or children at the same time.
Note: Split-Screen Mode is only available when two or more cameras are paired with your Parent Unit.
Turn Split-Screen Mode On

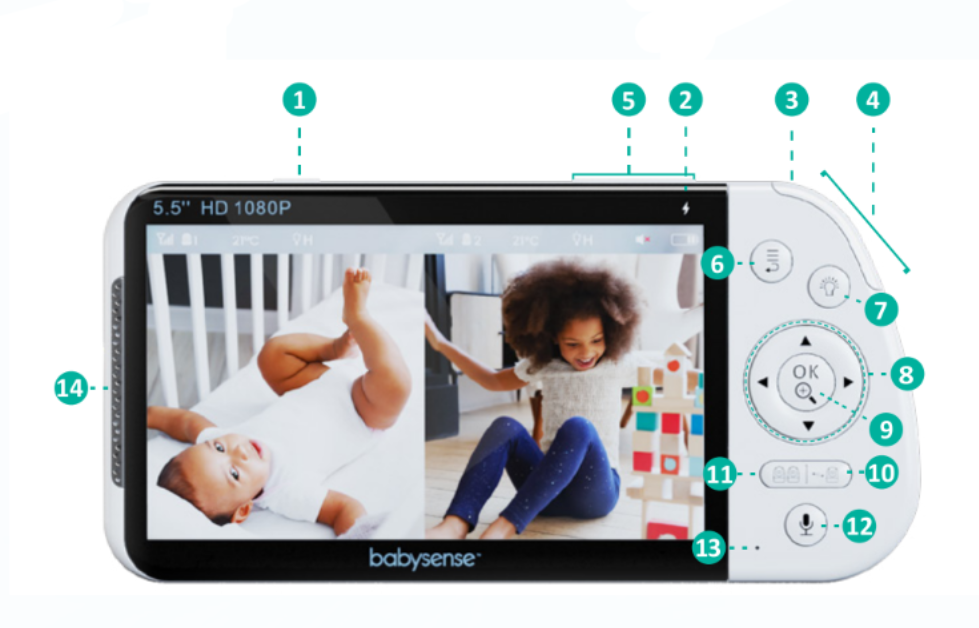

- Press the Split-Screen button (11) on the Parent Unit.
- The display will immediately switch to a split-screen view, showing two camera feeds side by side.
Turn Split-Screen Mode Off
- Press the Split-Screen button (11) again to return to the normal single-camera view.
How Split-Screen Works
When Split-Screen Mode is enabled:
- You can view two cameras simultaneously on the Parent Unit.
- Audio is only played from one camera at a time.
- The camera currently providing audio is highlighted with a green frame.
Using Four Cameras?
If four cameras are paired with your Parent Unit:
- The first split-screen view displays Cameras 1 and 2.
- Press the Split-Screen button (11) again to switch to the second split-screen view, displaying Cameras 3 and 4.
- Press the button once more to return to the first pair of cameras.
Helpful Tips
- Split-Screen Mode is designed for monitoring multiple areas at once while keeping the Parent Unit simple and easy to use.
- Since audio can only come from one camera at a time, watch for the green border to identify which camera's sound you are hearing.
- If Split-Screen Mode is unavailable, confirm that at least two cameras are paired with the Parent Unit.
